ur3 robot collaborative robot and pick and place robot

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Gearbox

Condition : New

Place of Origin : Denmark

Brand Name : UR

Weight : 65kg

Dimension(L*W*H) : 80*80*60cm

Power : 3KW

Warranty : 1 Year, 1 Year

Product Name : ur3 robot collaborative robot and pick and place robot

Number of axis : 6 axis

Max payload : 3 kg

Maximum reach : 500 mm

Pose repeatability(ISO 9283) : ±0.1mm

Material : Aluminum alloy

Protection rating : IP64

Mounting position : Floor/ Ceiling/Wall

arm weight : 11kg

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

After-sales Service Provided : Online support

Certification : CE/ROHS

Packaging Details : one set of Small robot arm 3Kg payload 6 axis UR 3 universal robot educational robotic arm packing with pallet+brown box, Size:80*80*60 cm, WG: 80Kg

Port : Shanghai

Supply Ability : 100 Set/Sets per Month

Price : Negotiable

Contact Now

UR3 robot collaborative robot and pick and place robot

UR3 Specification
ur3 robot collaborative robot and pick and place robot
Weight	11 kg
Loading	3 kg
Running range	500 mm
Articular Range	+/- 360°
	No limits of Last Articular rounding
Speed	All wrist joint ; 360 degree/second
	other Joint : 180 degree/second
	Tool : Normal 1 m/sec. 39.4 inches/sec
Tool	Normal 1 m/sec. 39.4 inch/sec.
Reiterate Range	+/- 0.1 mm
Bottom width	Ø118 mm
Free roll degree	6 units round joints
Control Box Size(WxHxD)	475 mm x 423 mm x 268 mm
I/O ports		Con.Box	Tool Conect
	Digital In	16	2
	Digital Out	16	2
	Analog In	2	2
	Analog out	2	-
I/O Power Suppling	Control Box 24 V 2A &, Tool 12 V/24 V 600 mA
Communication	TCP/IP 100 Mbit: IEEE 802.3u, 100BASE-TX
	Socket & Mod bus TCP
Programming	Consumer familier 12 inch touch screen Poly scope
	Grapic User Interface(GUI) Installation
Noise	Comparatively non noise
IP class	IP64
Power Usage	Around 100W in case of general program usage
Co work	15 kinds progressed controlable safety function
Materials	Alumimun , PP Plastic
Temperature	Operating from cetigrade 0 degree to 50
Power	100-240 VAC, 50-60 Hz
Power Line	6m between Robot and Control box
	4.5m between Touch screen and Control Box

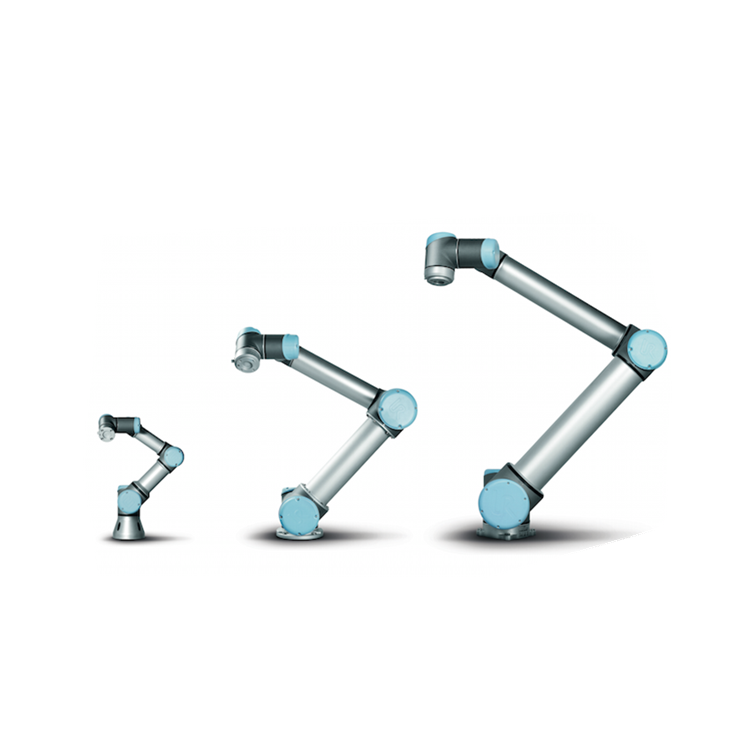

Detailed Images

ur3 robot collaborative robot and pick and place robot

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
